Been working on this in the background - another fuzz

[laurie]

Intense and precise Laurie, we expect nothing else

Looking forward to the final build.

Have you thought much about the switching arrangmenets etc?

Thank you!

Only one switch - the 3PDT to switch the effect in and out. Tone switch replaced by a potentiometer giving a "tilt" tone control between the two tone options. I'm finding a blend of half and half sounds pretty good.

[laurie]

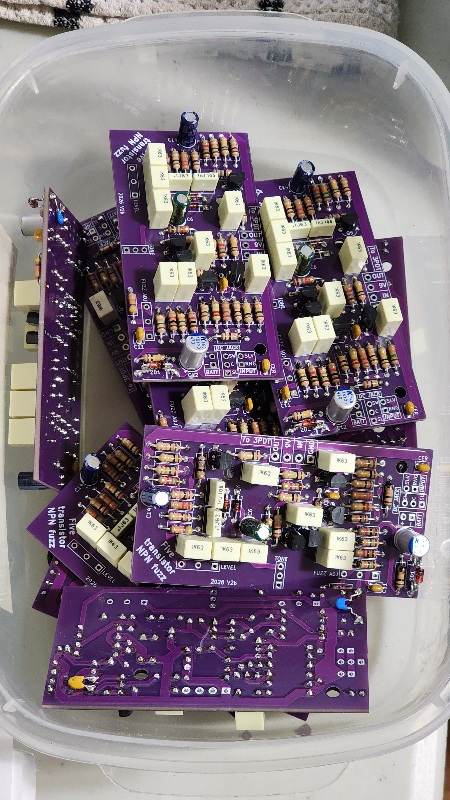

Build is coming along ... slowly!
.


[laurie]

The original pedal is battery only. My version has battery or external supply.

When powered from an external 9V supply, because the pedal is such high gain, some supplies inject a LOT of noise. The small yellow and blue capacitors on the back of the board are part of the noise reduction circuitry.

I'll post a technical explanation of all the noise reduction if anyone is interested?

[The_Doc]

I’d be interested to learn how that works. Thanks Laurie.

[bigtone23]

Same, I'm always game to learn anything!
