Lest we forget - NEVER leave a battery in a Boss pedal for "years"

User avatar
laurie
Posts: 1664
Joined: Fri Aug 17, 2018 2:07 am
Location: Canada
SBZ: Multi Platinum
Bossarea: Multi Platinum

Lest we forget - NEVER leave a battery in a Boss pedal for "years"

Post by laurie » Sun Feb 26, 2023 11:36 pm

This one was free from a local muso who said "it doesn't work anymore, I don't know why".

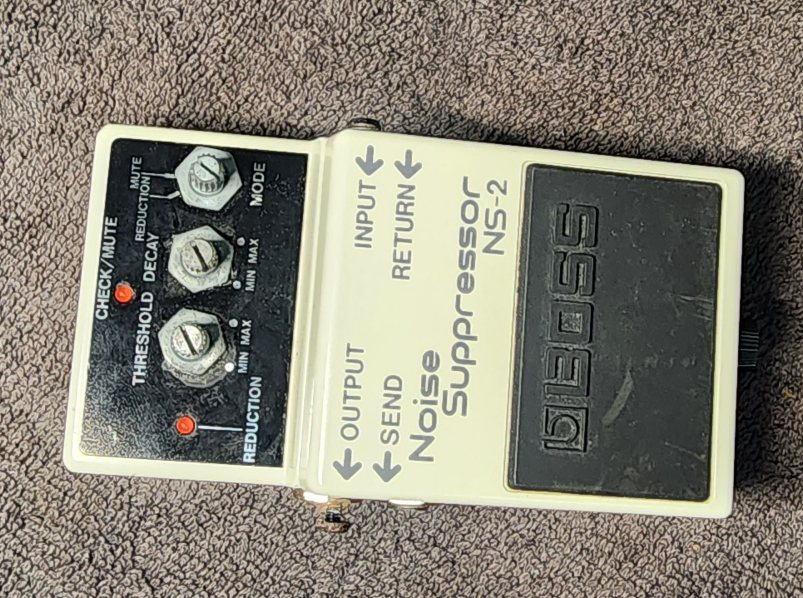

Looks kinda OK on the outside.
.
20230226_142520 SML.jpg
20230226_142520 SML.jpg (153.88 KiB) Viewed 2608 times

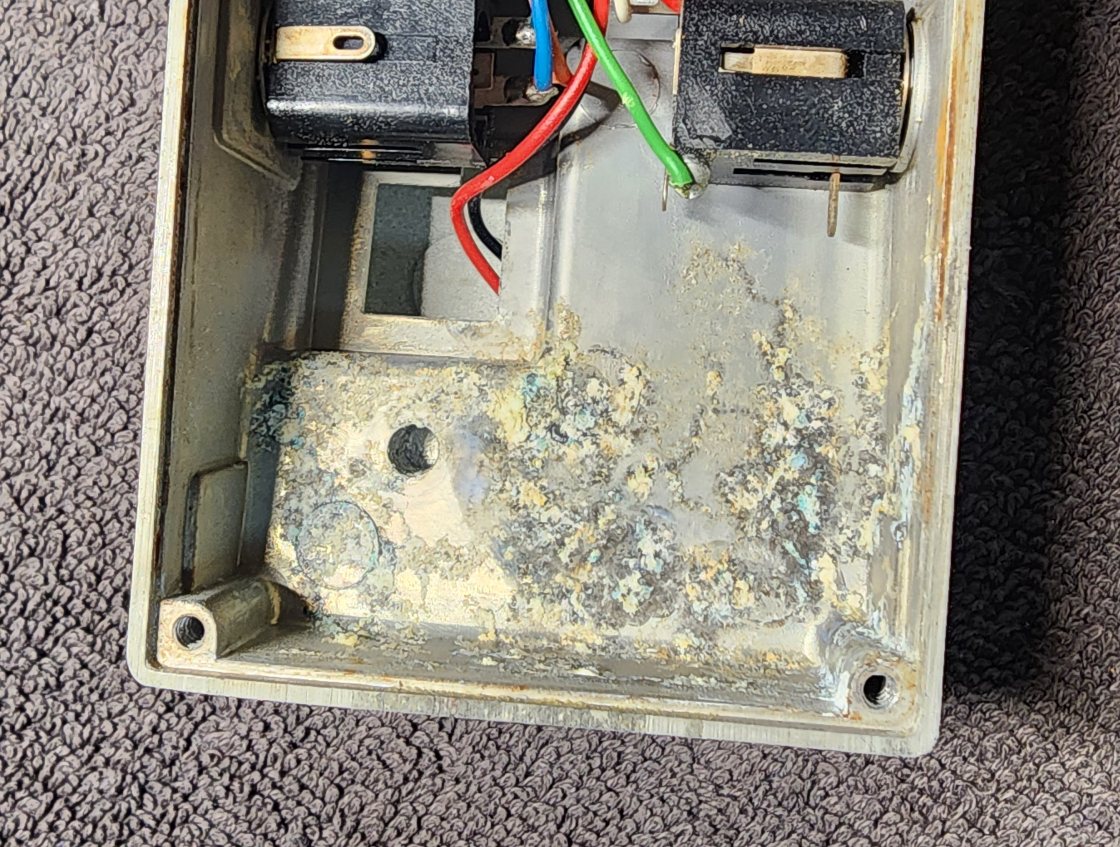

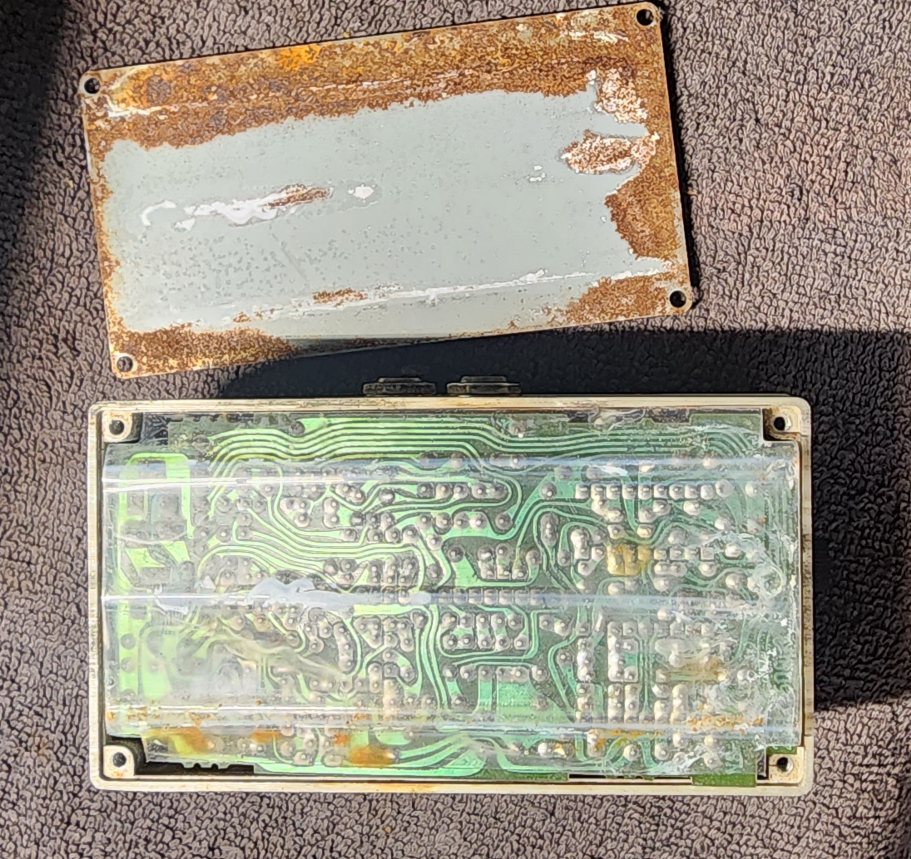

But inside is another story...
.
20230226_142604 SML.jpg
20230226_142604 SML.jpg (243.91 KiB) Viewed 2608 times
.
20230226_142619 SML.jpg
20230226_142619 SML.jpg (276.12 KiB) Viewed 2608 times
Last edited by laurie on Sun Feb 26, 2023 11:40 pm, edited 3 times in total.

User avatar
laurie
Posts: 1664
Joined: Fri Aug 17, 2018 2:07 am
Location: Canada
SBZ: Multi Platinum
Bossarea: Multi Platinum

Re: Lest we forget - NEVER leave a battery in a Boss pedal for "years"

Post by laurie » Sun Feb 26, 2023 11:38 pm

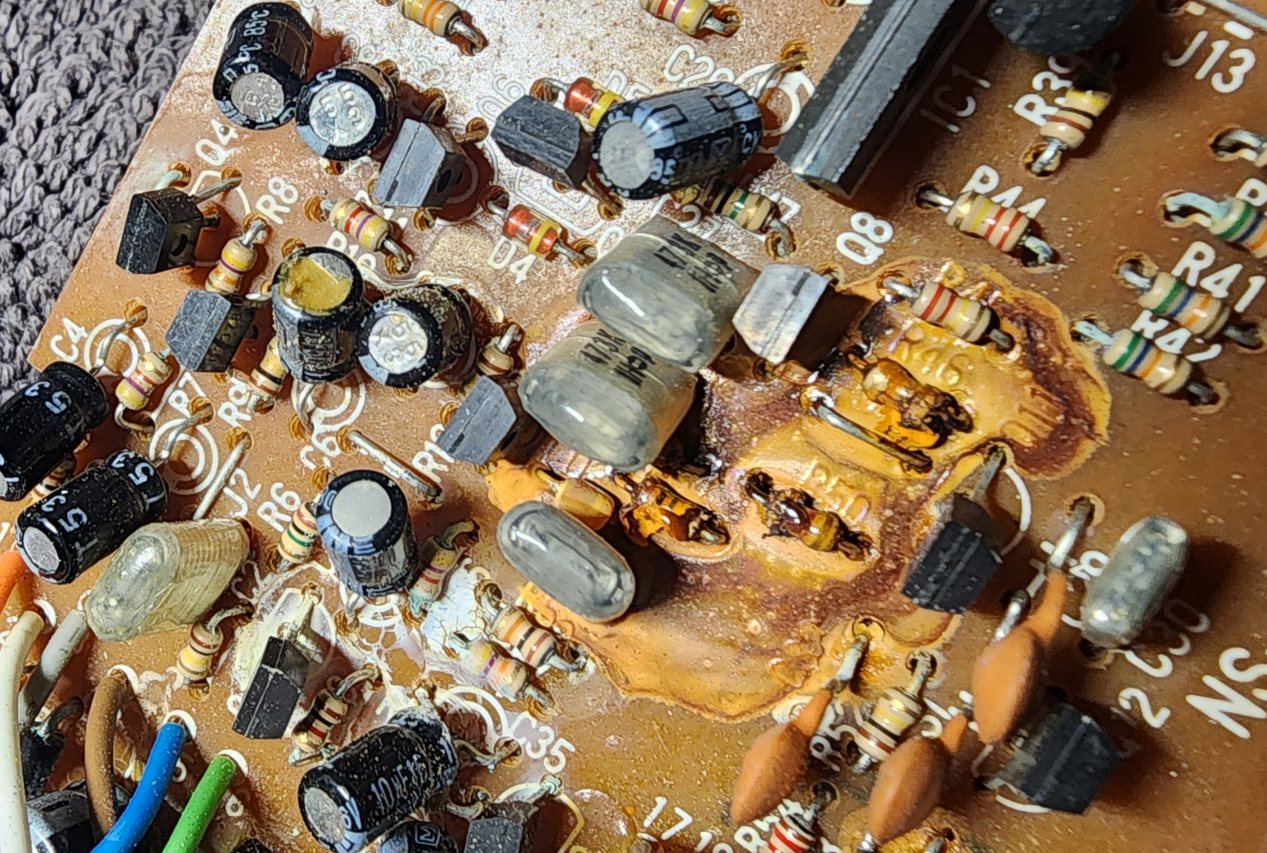

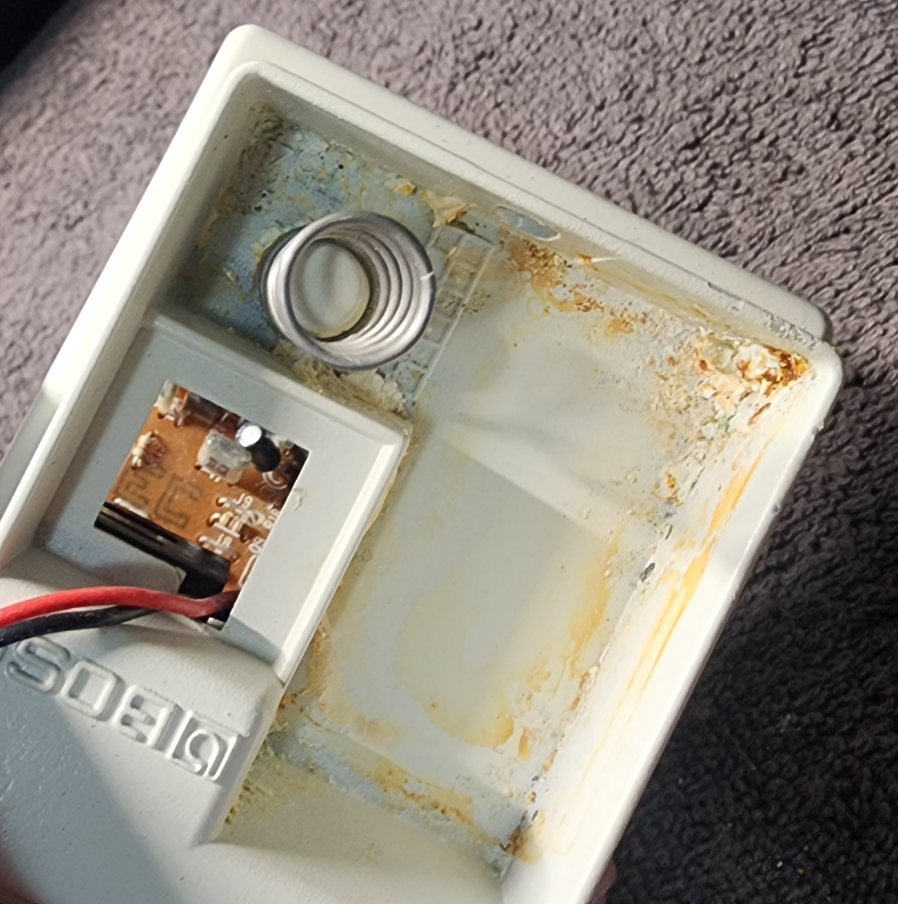

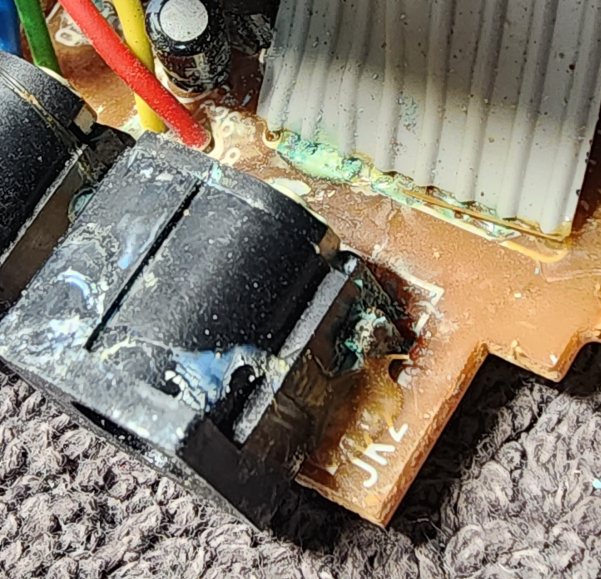

I'm not sure I can save this pedal, but I'll try.
.
.
20230226_142812 SML.jpg
20230226_142812 SML.jpg (132.34 KiB) Viewed 2606 times
.
20230226_143355 SML.jpg
20230226_143355 SML.jpg (102.54 KiB) Viewed 2606 times
.
20230226_143414 SML.jpg
20230226_143414 SML.jpg (309.37 KiB) Viewed 2606 times

User avatar
fuzzbuzzfuzz
Posts: 493
Joined: Thu Aug 23, 2018 11:25 am

Re: Lest we forget - NEVER leave a battery in a Boss pedal for "years"

Post by fuzzbuzzfuzz » Mon Feb 27, 2023 2:24 am

Oh good Lord!

Yikes!

User avatar
laurie
Posts: 1664
Joined: Fri Aug 17, 2018 2:07 am
Location: Canada
SBZ: Multi Platinum
Bossarea: Multi Platinum

Re: Lest we forget - NEVER leave a battery in a Boss pedal for "years"

Post by laurie » Mon Feb 27, 2023 2:51 am

Board repairs are done.

Replaced:
  • 8 capacitors - the leads were so corroded that they had fallen out of the body of the device.
  • 6 resistors - the leads were so corroded that they had fallen out of the body of the device.
  • 2 wire links
  • One of the 9VDC jacks - I would have done both but it is impossible to get one of them. Cleaned the one I kept and tested OK.
  • One LED - the leads were corroded and had released from the PCB tracks.
Plus:
  • Reterminated the ribbon cable.
  • Cleaned and lubricated the pots and selector switch.
Still to do:
  • Grind one of the jacks out of the case - the nut has rusted onto the jack threads and no amount of force will shift it.
  • Fully clean the corrosion off pedal body and then clear-coat it to stop the corrosion.
  • Fully clean the rust off pedal base-plate and then clear-coat it to stop the corrosion.
  • Reinstall everything and rewire all the broken wires.
  • Replace the jack I will be destroying removing it.
  • Replace the missing switch.
  • Test with fingers crossed.
I would never get rich doing these repairs - I'm about 3 hours into it so far, plus a bunch of (admittedly low cost) parts.

Pics to follow once it is all done.

User avatar
laurie
Posts: 1664
Joined: Fri Aug 17, 2018 2:07 am
Location: Canada
SBZ: Multi Platinum
Bossarea: Multi Platinum

Re: Lest we forget - NEVER leave a battery in a Boss pedal for "years"

Post by laurie » Mon Feb 27, 2023 2:53 am

Does anyone have a set of white knobs to suit one of these that they would be willing to sell me? I have a set of blue and a set of black, but no white.

User avatar
Pepe
Posts: 1704
Joined: Thu Aug 16, 2018 2:19 pm
Location: Germany
SBZ: Multi Platinum
Bossarea: Double Platinum
Contact:

Re: Lest we forget - NEVER leave a battery in a Boss pedal for "years"

Post by Pepe » Mon Feb 27, 2023 7:04 am

laurie wrote:
Sun Feb 26, 2023 11:38 pm

I have no spare knobs, sorry. The only (Spanish) shop in Europe that sells them at ebay takes 20 EUR per knob. :shock: They say that it is a discontinued Roland/BOSS spare part. Maybe you should ask Roland/BOSS in Canada?
Pepe at YouTube and Instagram

User avatar
Pepe
Posts: 1704
Joined: Thu Aug 16, 2018 2:19 pm
Location: Germany
SBZ: Multi Platinum
Bossarea: Double Platinum
Contact:

Re: Lest we forget - NEVER leave a battery in a Boss pedal for "years"

Post by Pepe » Mon Feb 27, 2023 11:52 am

I found another supplier in France who has them for four EUR per knob:
https://www.soundtoparts.com/en/bossrol ... white.html
If the shipping costs to Canada are 6 EUR as well, then you can buy three knobs for 18 EUR in total. Not exactly cheap, but not too bad, either.

The same shop offers the knobs on Reverb, but for a bit higher prices (due to all the fees at Reverb).
Pepe at YouTube and Instagram

User avatar
laurie
Posts: 1664
Joined: Fri Aug 17, 2018 2:07 am
Location: Canada
SBZ: Multi Platinum
Bossarea: Multi Platinum

Re: Lest we forget - NEVER leave a battery in a Boss pedal for "years"

Post by laurie » Mon Feb 27, 2023 1:13 pm

Thanks pepe! At those prices, I think I'll use either the black or blue knob sets that I have, depending on which ones look best.

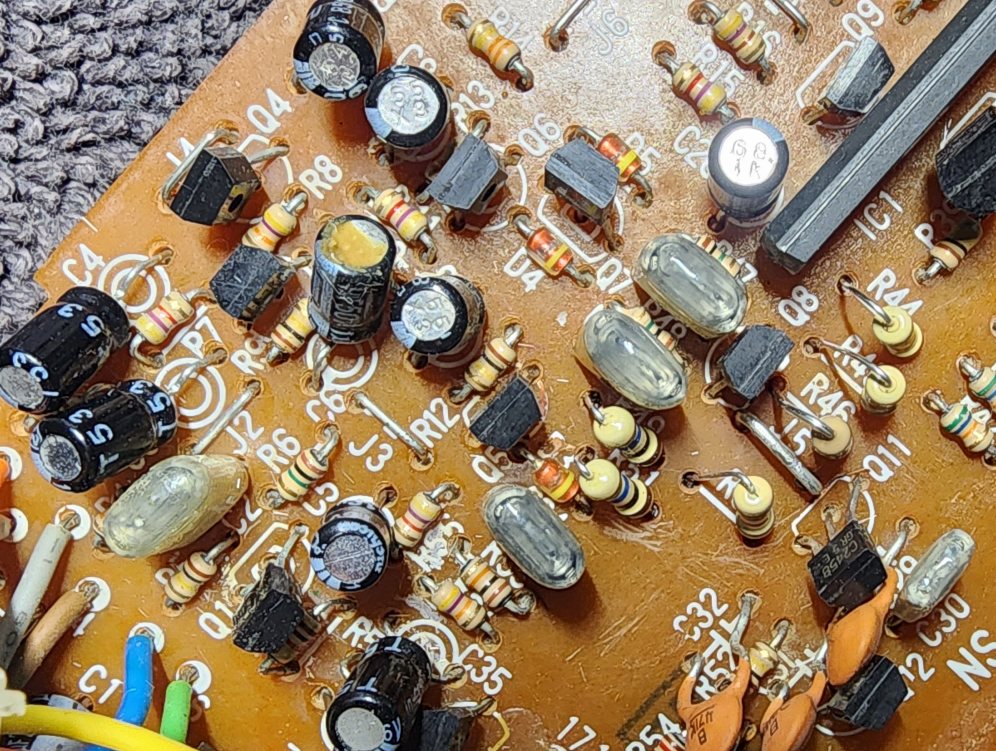

After an initial cleaning and repair.
.
20230227_060732 SML.jpg
20230227_060732 SML.jpg (246.35 KiB) Viewed 2570 times

User avatar
Pepe
Posts: 1704
Joined: Thu Aug 16, 2018 2:19 pm
Location: Germany
SBZ: Multi Platinum
Bossarea: Double Platinum
Contact:

Re: Lest we forget - NEVER leave a battery in a Boss pedal for "years"

Post by Pepe » Mon Feb 27, 2023 1:18 pm

WOW! How did you clean it? In this picture you don't see too many traces of the previous damage anymore!
Pepe at YouTube and Instagram

User avatar
laurie
Posts: 1664
Joined: Fri Aug 17, 2018 2:07 am
Location: Canada
SBZ: Multi Platinum
Bossarea: Multi Platinum

Re: Lest we forget - NEVER leave a battery in a Boss pedal for "years"

Post by laurie » Mon Feb 27, 2023 1:52 pm

Pepe wrote:
Mon Feb 27, 2023 1:18 pm
WOW! How did you clean it? In this picture you don't see too many traces of the previous damage anymore!
Scrubbed the board in soapy water with a toothbrush. Then millimeter-by-millimeter cleaning with isopropyl alcohol and a tiny brush.

Replaced the corroded components as noted above. I don't have 1/8W resistors so I used 1/4W.

Post Reply
