Eons ago I praised this pedal as a great tool to recover high frequencies lost to long guitar cables, and as a great partner for a NS-2 and a CS-3 to play beautifuly clean.
That combination allows the compressor/sustainer to compress without to "muffle" the sound and the sustainer to sustain a lot the note without amplifying the noise floor, thanks to the noise supressor right before it.

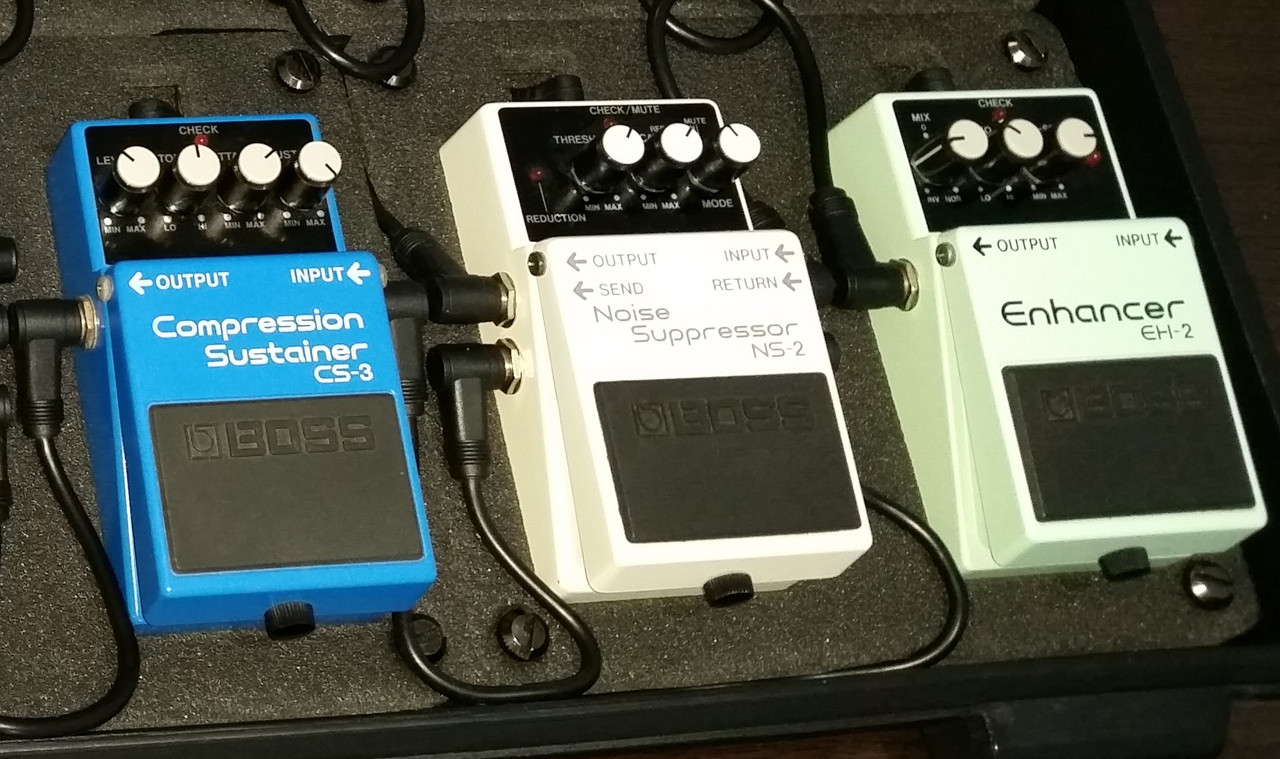

So it is: Guitar -> EH-2 -> NS-2 -> CS-3 -> etc. (no dirty pedals)
But recently I stumbled across a few YT videos about the EH-2 explaining it a bit more deeper, with one that spectrum analise it, which makes easier to understand by visualizing the effect.
https://www.youtube.com/watch?v=zhmGvfNs8mw
And, why not ask ChatGPT to enhance (pun intended) the explanation?
Enjoy your EH-2!
The prompt: Do a very detailed explanation on how the guitar pedal Boss EH-2 Enhancer works, it's working frequencies and where to put in a pedal chain.
ChatGPT:
What the Boss EH-2 Enhancer IsThe EH-2 is a dynamic tonal enhancer / exciter-style pedal that focuses on improving clarity, presence, and harmonic content in your guitar signal without adding distortion. It was produced in the 1990s and has developed a cult following despite being subtle and unconventional.
It’s not a fuzz, delay, or modulation effect — it’s closer to a presence enhancer or dynamic EQ/exciter that reacts to your playing and adds brightness and definition in a musical, responsive way.
Circuit & Operational OverviewAt a high level, the EH-2’s circuit does three main things:
Selects a frequency band to target (via FREQ).
Dynamically boosts (or cuts) that band based on your playing dynamics (via SENS).
Blends the processed signal back with your dry signal with phase options (via MIX).
It’s analog, low-current (about 24 mA at 9 V), and uses an internal dynamic detector rather than a fixed static EQ.
What Each Knob Does
FREQ (Frequency)This knob selects which part of the upper mids / high frequency range you want to affect.
Turning it toward higher values targets progressively higher treble.
Frequencies above about mid-treble can become so high that they barely affect the audible guitar range — that’s one reason players often keep FREQ at or below noon.
In practical terms:
Lower FREQ = emphasis around presence / upper mids (where note clarity and attack live).
Higher FREQ = sparkle / sheen bands (higher overtones).
MIX (Mix/Phase)This controls how much of the enhanced signal is mixed back with the original dry signal.
At 12 o’clock, the pedal is effectively transparent (no net effect).
Clockwise (normal phase) adds the enhanced frequencies in phase, making them more pronounced.
Counter-clockwise (inverse phase) introduces the processed signal out of phase, which can subtract or smooth frequencies rather than boost them.
This phase control makes the EH-2 unusual — it’s not just a one-band EQ boost, but a phase-aware enhancement allowing both additive and subtractive tonal shaping.
SENS (Sensitivity / Dynamics)This controls how responsive the effect is to your playing dynamics.
Lower settings mean the enhancement happens only when you play harder.
Higher settings make the effect more always-on and less dynamic.
Because of this, the EH-2 can feel almost compressive on high notes, even though it’s not truly compressing — it’s dynamically emphasizing the chosen frequency band when you dig in.
How It Affects Your ToneUnlike a simple static EQ where you cut/boost a band with no dynamics, the EH-2’s sound processing is dynamically driven:
It boosts upper harmonics and presence depending on how hard you play, making your notes pop and ring more clearly.
It can also fill in clarity lost from multiple pedals or long cable runs, acting almost like a studio “presence” enhancer.
Because of the phase-mix feature, it allows subtractive tonality adjustments (smooth or thin certain Treble elements) as well as additive ones.
Some players compare its effect loosely to an exciter/enhancer or Sonic Maximizer-style processor, just subtler and more dynamic.
Typical Frequency BehaviorWhile Boss never publishes exact Hertz specs for FREQ, from user experience and reviews we can infer:
Sweepable mid-high region — the core practical range is roughly 2 kHz to 8+ kHz of the guitar spectrum. These are the frequencies responsible for presence, attack, and treble definition.
At higher FREQ settings, you may be targeting very high overtones that aren’t as crucial in musical content — hence why audible effects become subtle or hard to hear.
If you want traditional EQ shaping with defined curves, other pedals (graphic or parametric EQs) are better — EH-2 is intentionally dynamic and responsive.
Where to Put It in Your Signal ChainThere’s no one “correct” position — it depends on what you’re trying to achieve — but here are well-supported rules of thumb:
1. After Drive / Distortion / FuzzPutting the EH-2 after overdrives/distortions lets it add presence and clarity to a saturated tone — helping the guitar cut through without altering the distortion character.
2. Near the End of the ChainMany players use it at or near the end, after modulation and before delays/reverbs — or even at the very end of the chain — to tweak final tone and help the guitar sit in the mix.
Especially in all-Boss boards, it can compensate for high-end loss from buffers/cable length.
3. In the FX Loop (Optional)If your amp has an effects loop, placing the EH-2 in the return or send/return loop lets you shape the tone after preamp distortion and before time-based effects. Some players prefer this for lead clarity.
Practical Uses by Style✔ Rhythm Playing — add presence without harshness to cut through in dense mixes.
✔ Leads — make solos shine with dynamic high-end that responds to picking intensity.
✔ Compensation Tool — restore clarity lost in long chains of buffered pedals.
✔ Tonal Shaping — smooth or brighten tones without a graphic EQ.
