Building myself a vintage Deluxe Electric Mistress clone

[laurie]

I've had a Reticon SAD1024 chip in the parts bin for maybe 15 years and looking at the prices people are getting for them these days I thought I might sell it for a satisfying price on Reverb.com.

Unfortunately, I have no SAD1024 based pedals, so can't test it. So I decided to build a test circuit for it. Test it, then sell it as "known good".

And then I thought, if I'm going to that much trouble, I might as well build a whole pedal.

I'm in the process of slowly recreating a vintage Deluxe Electric Mistress (V2):
http://www.metzgerralf.de/elekt/stomp/m ... ematic.gif

I'll let you know how it goes. I sincerely HOPE the SAD1024 is actually OK, and not a dud!

[Pepe]

[The_Doc]

Good luck Laurie and fingers crossed.

[bigtone23]

All right!
I used to have a 79/80-ish Dlx EM. Cool flange!
Hope the build goes well!

[laurie]

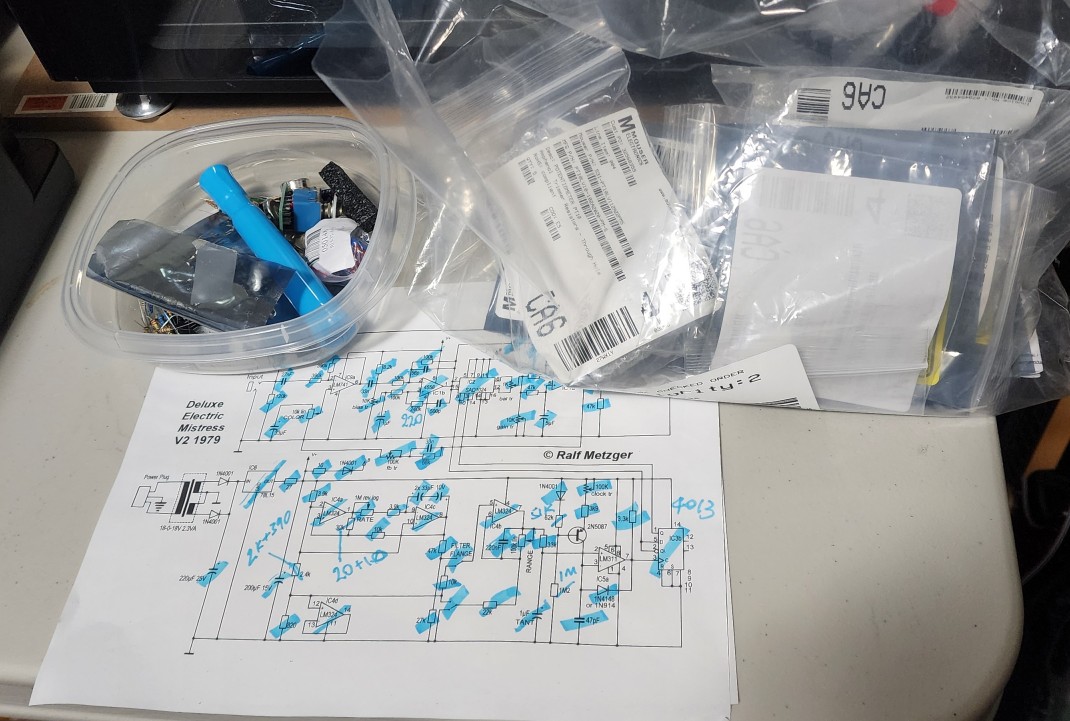

The build so far ...
.
.


[laurie]

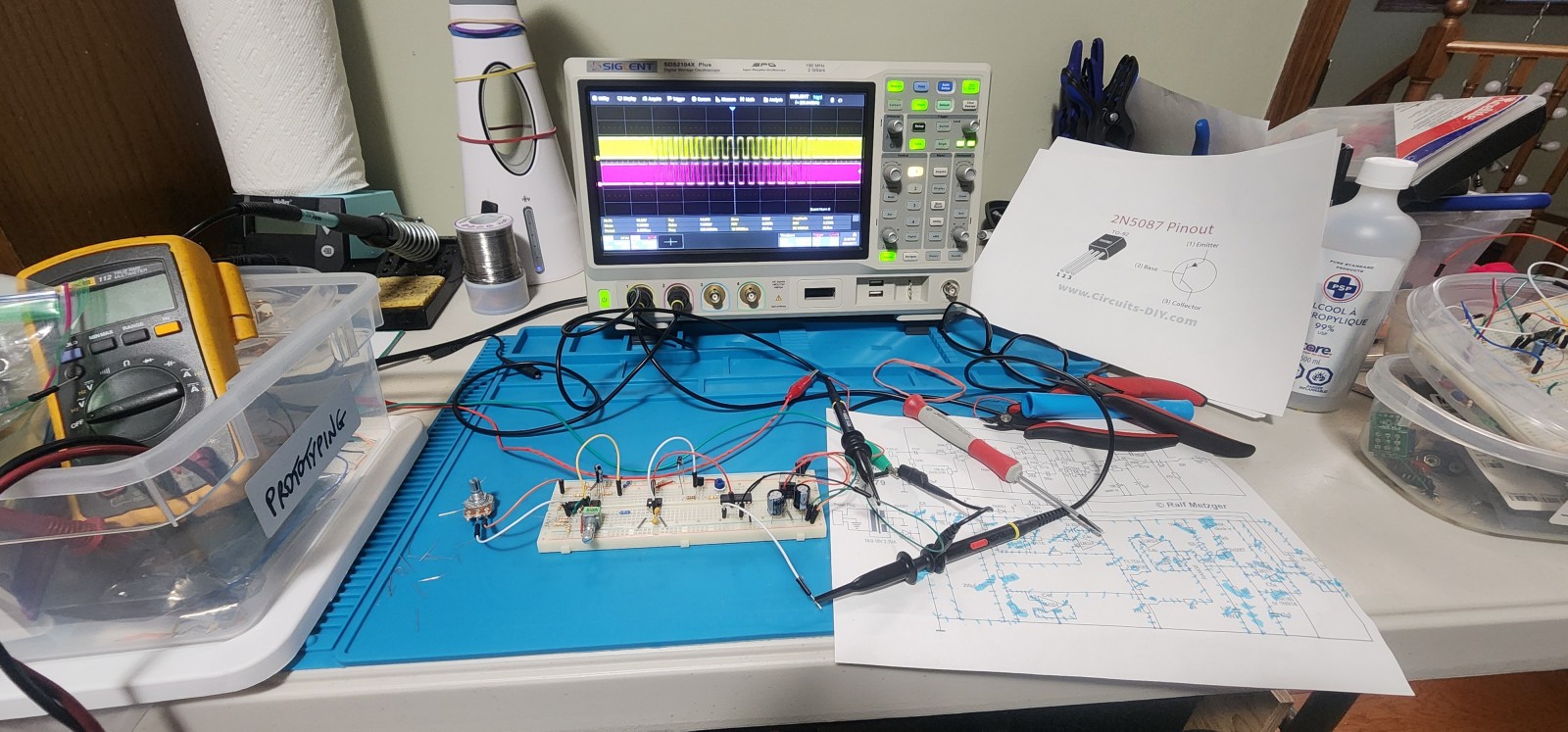

Clock circuit breadboarded.
.
.


[laurie]

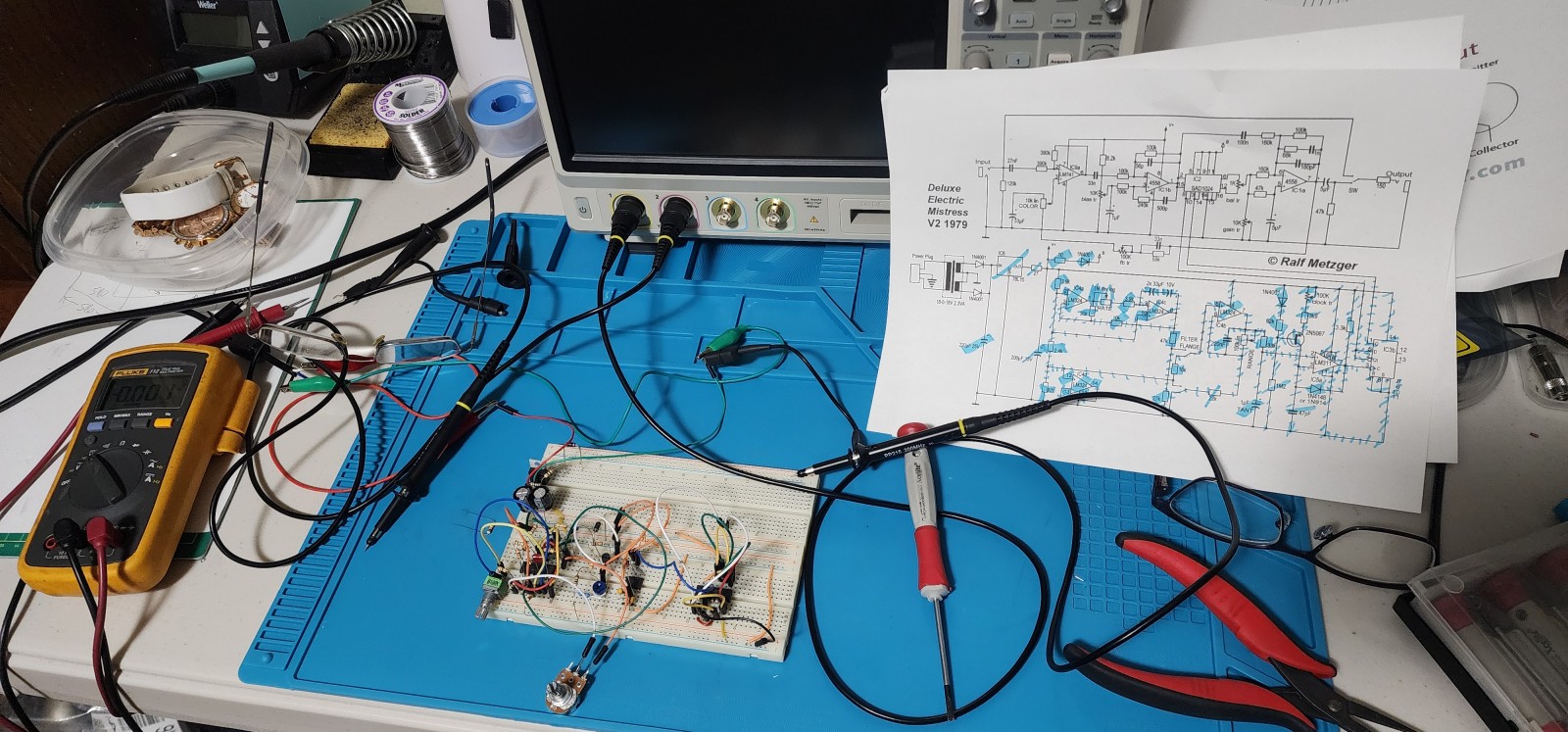

Clock circuit rebuilt and tested.
.


[Pepe]

Nice, nice, nice!

[laurie]

Managed to get some basic noise out of the breadboard today. The SAD1024 chip is good. Happy about that!

There are a few bugs to sort out, but it sounds close to being correct.

[Pepe]

Great news!
